Introducing JJKJ’s state-of-the-art nanocrystalline ribbon. Crafted with precision, our nanocrystalline ribbon is a highly rated and top-tier product offering unparalleled characteristics. With its high saturation magnetic induction intensity and magnetic permeability, it offers exceptionally low coercivity and loss. This nanocrystalline ribbon is remarkably stable, demonstrating the superior quality we at JJKJ pride ourselves on.

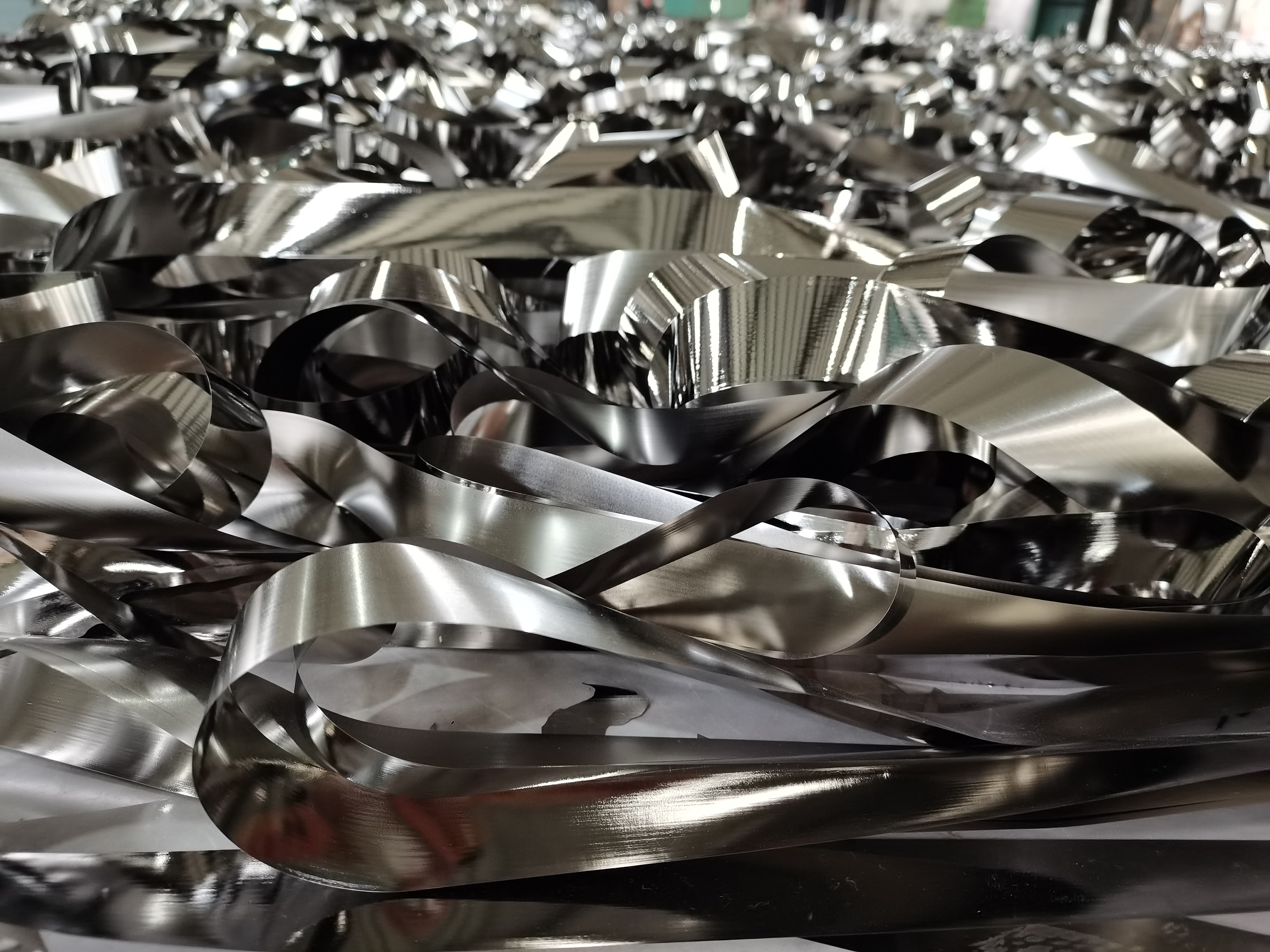

Nanocrystalline Ribbon

Nanocrystalline ribbon have excellent characteristics such as high saturation magnetic induction intensity, high magnetic permeability, low coercivity, low loss and good stability, high strength and toughness, wear resistance and corrosion resistance, and can replace silicon steel, permalloy and ferrite to become medium and high Ideal material for frequency transformers, transformers, and inductance components.

Characteristic

1, High saturation magnetic induction

2, High permeability

3, Low coercivity

4, Excellent stability



Application area

1,Made common mode chokes instead of Co-based amorphous,silicon steel sheet,ferrite,permalloy

2, Differential mode filter inductance

3, High-frequency switching power supply

4, High frequency inverter

5, Zero-sequence current transformer, magnetic amplifier,etc.

1K107/1K107B Nanocrystalline strip properties and indexes

Item	Numerical value
Material Composition	FeCuNbSiB
strip thickness tolerance(mm)	32±2
Magnetic strength B800	≥1.2T
Curie temperature(oC)	570oC
crystallization temperature	500oC
Saturation magnetostriction coefficient	＜2×10-6
Initial permeability μi	≥80000
Maximum permeability um	≥500000
Density（g/cm³ ）	7.2
electrical resistivity(μΩ.cm)	130
Lamination factor	≥0.8
Coercivity Hc	≤1A/m
Magnetic permeability μ (1kHz)	≥70000
Magnetic permeability μ (10kHz)	≥60000
Magnetic permeability μ (100kHz)	≥10000
Operating Temperature Range	-50~120℃
1K107 Nano-crystalline ribbon width：ribbon width 5 - 60mm



Width of nano-crystalline ribbon
Width (mm)	Thickness (mm)
5	28~35
8	28~35
10	28~35
15	28~35
20	28~35
25	28~35
30	28~35
35	28~35
40	28~35
45	28~35
50	28~35
60	28~35

Permeability at different frequencies（Inductance permeability）

• Inductance loss curve and the data table at different frequencies：



---

Previous:nanocrystalline core

Next:Good quality High Permeability Nanocrystalline Toroidal Ring Core

---

Our ribbon is robust and resilient, providing customers with wear resistant and corrosion resistant benefits. These distinctive properties make it an ideal material for medium and high frequency transformers, transformers, and inductance components. Its unique features allow it to replace traditional materials like silicon steel, permalloy, and ferrite. Making strides in the electrical industry, our nanocrystalline ribbon sets us at the forefront of advanced material technology. At JJKJ, we believe in providing only the best to our customers. This commitment to quality reflects in our nanocrystalline ribbon, designed to cater to your diverse needs. This product embodies our commitment to innovation and progress by blending top-notch technology with customer-centric design. Discover the capabilities of our nanocrystalline ribbon and revolutionize your industrial applications today.
