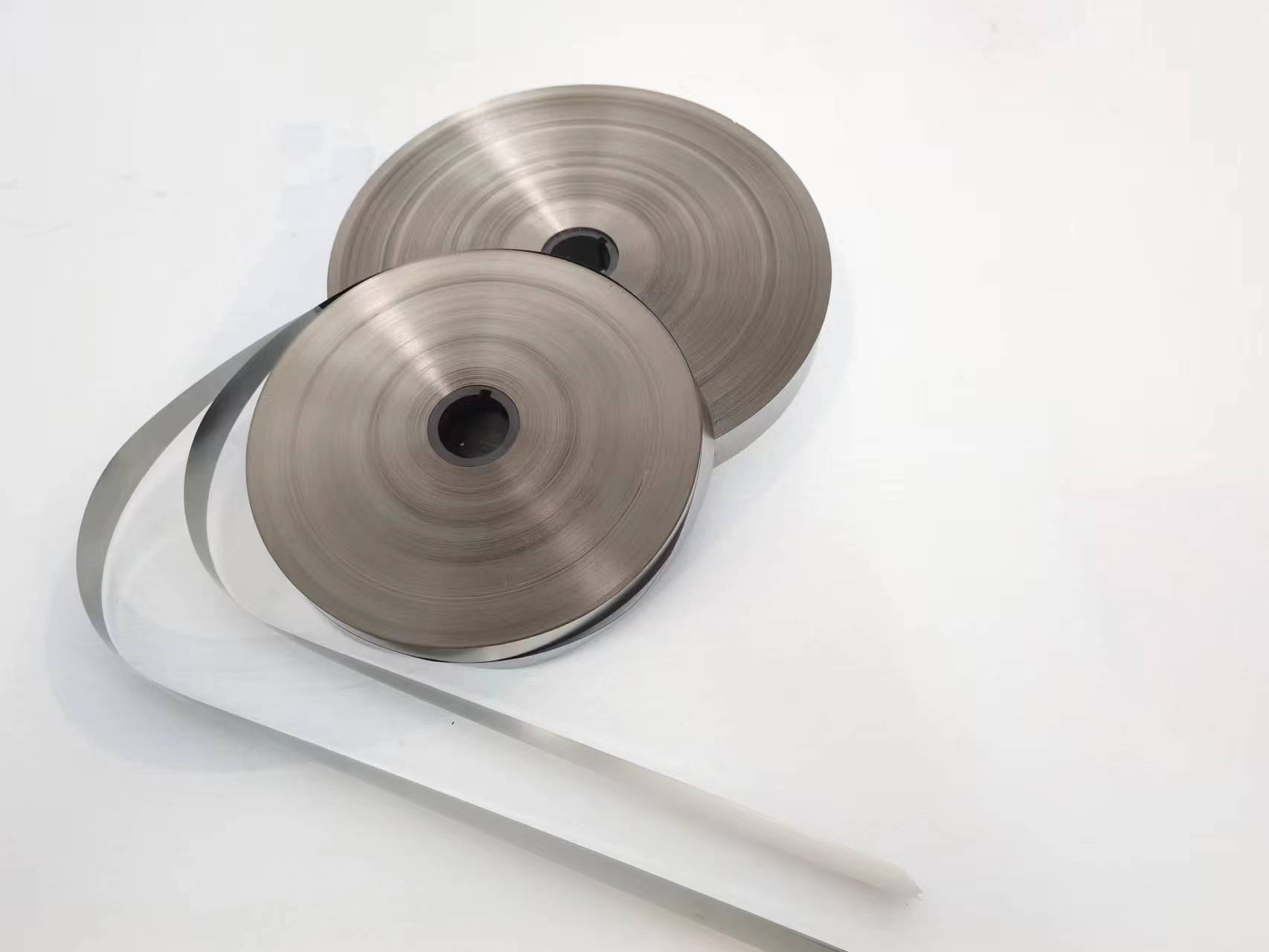

Premium Nanocrystalline Ribbon 1k107 for Advanced Applications
Delving into the world of advanced materials, ZHEJIANG JINGJING NEW MATERIAL TECHNOLOGY CO.,LTD presents its flagship product, the Nanocrystalline Ribbon 1k107. This innovative material stands at the forefront of the magnetic components industry, heralding a new era of efficiency and performance. The Nanocrystalline Ribbon 1k107 is a testament to our commitment to excellence and our relentless pursuit of technological advancement.
Crafted through a sophisticated process, the Nanocrystalline Ribbon 1k107 boasts an array of outstanding characteristics that set it apart from traditional materials. Its high saturation magnetic induction ensures that it operates at the pinnacle of efficiency, capturing and utilizing magnetic fields more effectively than its predecessors. This, coupled with its high permeability, allows for the creation of components that are not only more efficient but also smaller in size, enabling more compact and innovative designs. Moreover, the ribbon’s low coercivity signifies that less energy is required to magnetize or demagnetize it, further enhancing its efficiency and contributing to energy conservation in the applications it serves.
The applications of the Nanocrystalline Ribbon 1k107 are vast and varied, demonstrating its versatility and adaptability. It has revolutionized the manufacturing of common mode chokes, presenting a high-performance alternative to Co-based amorphous, silicon steel sheets, ferrite, and permalloy. Its superior properties make it an ideal choice for differential mode filter inductance, high-frequency switching power supplies, and high-frequency inverters, where performance and reliability are paramount. Additionally, it finds critical use in zero-sequence current transformers and magnetic amplifiers, among others, highlighting its broad applicability and the trust placed in it across various industries. ZHEJIANG JINGJING NEW MATERIAL TECHNOLOGY CO.,LTD is proud to lead the charge in the development of advanced materials like the Nanocrystalline Ribbon 1k107. Our dedication to innovation, quality, and sustainability drives us to continuously explore the possibilities of new materials and to deliver solutions that propel our customers and the industry forward. Trust in the Nanocrystalline Ribbon 1k107 to elevate your applications to new heights of efficiency and performance.
1, High saturation magnetic induction
2, High permeability
3, Low coercivity
4, Excellent stability
1,Made common mode chokes instead of Co-based amorphous,silicon steel sheet,ferrite,permalloy
2, Differential mode filter inductance
3, High-frequency switching power supply
4, High frequency inverter
5, Zero-sequence current transformer, magnetic amplifier,etc.
| Item | Numerical value |
| Material Composition | FeCuNbSiB |
| strip thickness tolerance(mm) | 32±2 |
| Magnetic strength B800 | ≥1.2T |
| Curie temperature(oC) | 570oC |
| crystallization temperature | 500oC |
| Saturation magnetostriction coefficient | ＜2×10-6 |
| Initial permeability μi | ≥80000 |
| Maximum permeability um | ≥500000 |
| Density（g/cm³ ） | 7.2 |
| electrical resistivity(μΩ.cm) | 130 |
| Lamination factor | ≥0.8 |
| Coercivity Hc | ≤1A/m |
| Magnetic permeability μ (1kHz) | ≥70000 |
| Magnetic permeability μ (10kHz) | ≥60000 |
| Magnetic permeability μ (100kHz) | ≥10000 |
| Operating Temperature Range | -50~120℃ |
Inductance loss curve and the data
table at different frequencies
Typical Characteristic
