Short Description:

Product Detail

Having a sound small business credit score, outstanding after-sales services and modern manufacturing facilities, we've got earned an fantastic reputation among our buyers across the globe for Pot Core Transformer, Nanocrystalline Ribbon, Ferrite Core Toroidal Transformer, Welcome buddies from all over the earth come to visit, tutorial and negotiate.

China wholesale Split Current Transformer Supplier –runway type transformer iron core – JingjingDetail:

● The adjustable range of permeability（μ10KHz=15000~50000）
● Excellent frequency characteristics
● High saturation magnetic induction strength（ 1.20T）
● Lower eddy current losses
● Excellent temperature stability

● Solar inverters
● Switched-mode power supplies
● Frequency Converter
● EMC filters
● Welding equipment

● Wind generators
● Automotive applications
● Inductive cooking
● Uninterrupted Power Supply(UPS)

High μ,high Bs, easy to design, reduce the core geometry effectively.
Excellent frequency character
Stable temperature character
Excellent impedance character.
Low magnetostriction coefficcident, low noise

Item	Unit	Reference value
(Bs)Saturated induction density	T	1.2
(μi)Permeability	Gs/Oe	8.5X104
(10KHz)Permeability	GS/OE	8.0X104
(100KHz)Permeability	Gs/Oe	2.0X104
(Tc)Curie Temperature	℃	570
(p)Density	g/cm3	7.2
(Ω)Resistivity	μΩ.cm	≥130
(k)Stacking Factor	-	≥0.8

Data Sheet of magnetization Curve of nanocrystalline transformer core (B-H curve)

H(mA/cm)	B(Gs)	μ(×10⁴	H（mA/cm)	B(Gs)	μ(×10⁴	H（mA/cm)	B(Gs)	μ(×10⁴
0.39	50	10.2	0.77	100	10.33	1.39	200	11.45
1.85	300	12.9	2.27	400	14.02	2.62	500	15.19
2.87	600	16.64	3.16	700	17.63	3.38	800	18.83
3.61	900	19.84	3.81	1000	20.89	4.01	1100	21.83
4.38	1300	23.62	4.75	1500	25.13	5.06	1700	26.74
5.35	1900	26.26	5.57	2100	30.00	5.86	2300	31.23
6.11	2500	32.56	6.34	2700	33.89	6.57	2900	35.13
6.82	3100	36.17	7.05	3300	37.25	7.28	3500	38.26
7.56	3700	38.75	7.85	4000	40.55	8.22	4300	41.63
8.64	4600	42.37	9.04	4900	43.13	9.41	5200	43.97
9.84	5500	44.48	10.29	5800	44.85	10.74	6100	45.20
11.06	6300	45.33	11.43	6500	45.25	11.97	6800	45.21
12.51	7100	45.16	12.85	7200	44.59	13.31	7400	44.24
13.79	7600	43.86	14.36	7800	43.22	14.98	8000	42.50
15.66	8200	41.67	16.43	8400	40.68	17.20	8600	39.79
18.31	8800	38.25	19.47	9000	36.78	20.15	9100	35.94
20.98	9200	34.90	21.80	9300	33.95	22.74	9400	32.89
23.68	9500	31.93	24.73	9600	30.89	25.95	9700	29.75
27.43	9800	28.43	29.00	9900	27.17	30.70	10000	25.92

1.Our company from the raw material processing to finished products are completed independently.
2.At present, the company produces 3000 kinds of Ultra-microcrystalline iron core.
3.The specifications of the core produced by the company is from minimum size 10mm to the maximum size of 1300mm. We are in a position to accept orders against customers samples specifying design, specifications and packaging requirements.
4.Our company has stronger technical strength and ability to research and develop new products than other competitors in the same industry.
5.Our company can design the corresponding iron core if the customer put forward technical requirements such as mutual inductor.
6.Our company has its own brand.

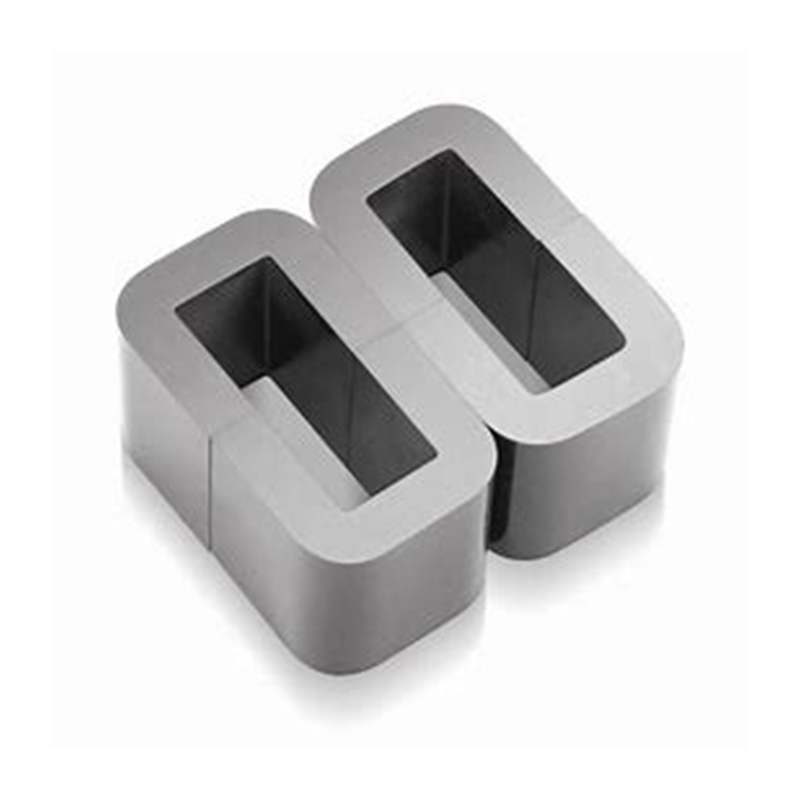

Product detail pictures:
